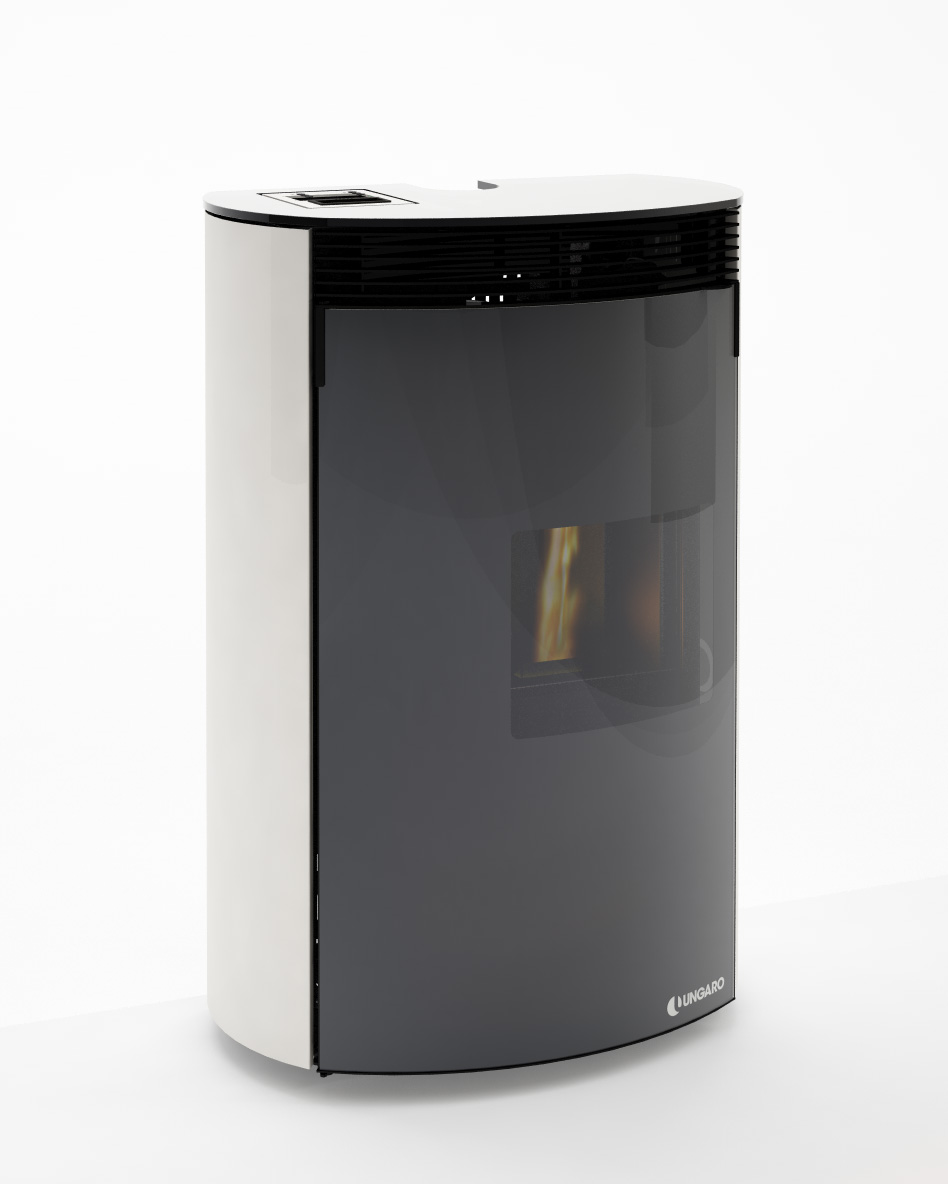

SOLE
 |
 |
Description
All the heat you need is in a compact stove. Exclusive vertical exchanger with 3 flue gas passes providing a highly efficient, economical and ecological Ungaro solution that revolutionizes pellet heating. Powder-coated steel finish, glass aethetic door.
Additional information
| Weight | 100 kg |
|---|---|
| Dimensions | 682 × 400 × 1016 mm |
Plus
• Space saver;
• Upper or rear smoke outlet;
• Integrated T-pipe with front service;
• Monocoque construction of combustion chamber;
• Double aesthetic and technical door;
• Forced frontal ventilation;
• High resolution LCD display;
• 3 automatic programations;
• Electronic cleaning of burn pot;
• Automatic control of combustion power;
• Double room probe;
• Mechanical draft control;
• Auxiliary contact for external thermostat;
• Pressure relief valve;
• Ceramic igniter;
• Anti-vibration rubber pads.
Optional
• Additional canalization kit;
• Airtight stove.
Data sheet
| Dati Tecnici | AR7 | AR7NS | ||
|---|---|---|---|---|
| Potenza Termochimica Heat input | max | kW | 8,4 | 7,1 |
| min | kW | 3,4 | 3,2 | |
| Rendimento Efficiency | max | % | 89,7 | 90 |
| min | % | 92,2 | 91 | |
| Potenza all'aria Power to air | max | kW | 7,5 | 6,4 |
| min | kW | 3,1 | 2,9 | |
| Consumo orario pellet Pellet consumption per hour | max | kg | 1,7 | 1,5 |
| min | kg | 0,7 | 0,7 | |
| Capacità serbatoio Pellet hopper | kg | 13 | 13 | |
| Superficie Riscaldabile Heating area | m2 | 60 | 60 | |
| Uscita scarico fumi Exhaust pipe | Ømm | 80 | 80 | |
| Tiraggio Draft | Pa | 12 | 12 | |
| Entrata aria comburente Air intake | Ømm | 50 | 50 | |
| Tensione alimentazione Power supply | V | 220 | 220 | |
| Hz | 50 | 50 | ||
| Assorbimento elettrico in fase di lavoro Energy consumption | W | 350 | 350 | |
| Altezza Height | mm | 1015 | 1015 | |
| Larghezza Width | mm | 610 | 610 | |
| Profondità Depth | mm | 272 | 272 | |
| Peso Weight | kg | 100 | 100 |
Download
- Data sheet:
- Test certificate:
- Environmental Ministerial Decree:
- User manual:
Colors
| RAL 9005 | RAL 3004 | RAL 8017 | RAL 9010 | RAL 1035 | RAL 6012 | RAl 5024 | RAL 6003 |
