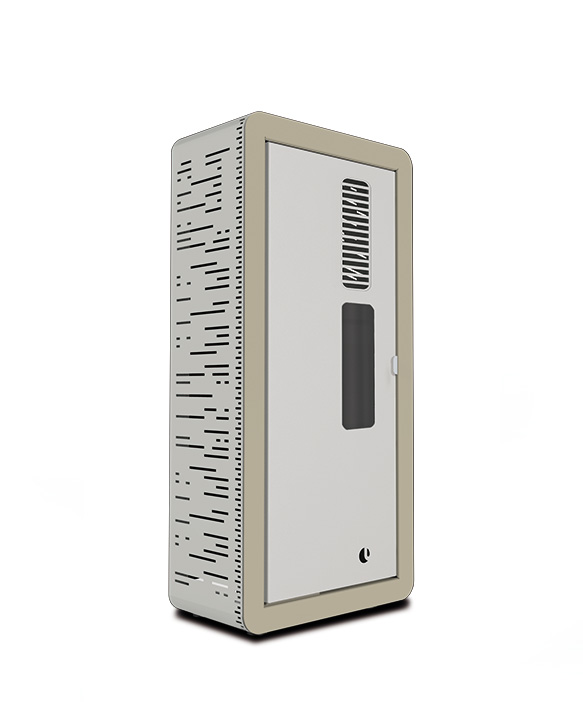

ORCHIDEA
 |
 |
 |
|
 |
|||
| End production from September 2020 | |||
Description
Contemporary design, all the heat you need in a compact stove. The model distinguishes the exclusive vertical exchanger with triple flue gas passes providing a highly efficient, economical and ecological Ungaro solution that revolutionizes pellet heating.
Additional information
| Weight | 140 kg |
|---|---|
| Dimensions | 593 × 370 × 1268 mm |
Plus
• Easy Clean ash box;
• Forced frontal ventilation;
• Upper or rear smoke outlet;
• Integrated T-pipe with front service;
• Double aesthetic and technical door;
• Electronic cleaning of burn pot;
• 3 automatic programations;
• Automatic control of combustion power;
• Multi system control (Boiler/Cylinder/Stratification);
• Open vented / Sealed system control;
• Auxiliary contact for external thermostat;
• Digital pressure gauge;
• High-efficiency pump;
• Mechanical draft control;
• Water pressure safety control;
• Expansion vessel, 3 bar safety valve;
• Pressure relief valve;
• Ceramic igniter
• Anti-vibration rubber pads.
Optional
• Glass hearth pad;
• Kit delta Δ20 – return temperature control;
• Water tank/boiler temperature probe.
Data sheet
| Dati Tecnici | |||
|---|---|---|---|
| Potenza Termochimica Heat input | max | kW | 14,0 |
| min | kW | 4 | |
| Potenza Nominale Nominal power | max | kW | 12,6 |
| min | kW | 3,7 | |
| Rendimento Efficiency | max | % | 90 |
| min | % | 91 | |
| Potenza all'acqua Power to water | max | kW | 10,0 |
| min | kW | 2,7 | |
| Potenza all'aria Power to air | max | kW | 2,6 |
| min | kW | 1 | |
| Consumo orario pellet Pellet consumption per hour | max | kg | 3 |
| min | kg | 0,9 | |
| Capacità serbatoio Pellet hopper | kg | 22 | |
| Superficie Riscaldabile Heating area | m2 | 100 | |
| Uscita scarico fumi Exhaust pipe | Ømm | 80 | |
| Tiraggio Draft | Pa | 12 | |
| Entrata aria comburente Air intake | Ømm | 50 | |
| Prevalenza Circolatore Water pump prevalence | m | 5 | |
| Pressione utilizzo a freddo Water pump prevalence | bar | 0,8/1,2 | |
| Dimensione vaso di spansione Expansion vessel | l | 6 | |
| Tensione alimentazione Power supply | V | 220 | |
| Hz | 50 | ||
| Assorbimento elettrico in fase di lavoro Energy consumption | W | 165 | |
| Altezza Height | mm | 1268 | |
| Larghezza Width | mm | 593 | |
| Profondità Depth | mm | 322 | |
| Peso Weight | kg | 140 |
Download
- Data sheet:
- Energy label:
- Product data:
- DoP:
- Environmental product declaration:
- Environmental Ministerial Decree:
- Test certificate:
- DM Ambientale:
Colors
| RAL 9005 | RAL 3004 | RAL 8017 | RAL 9010 | RAL 1035 | RAL 6012 | RAl 5024 | RAL 6003 |
