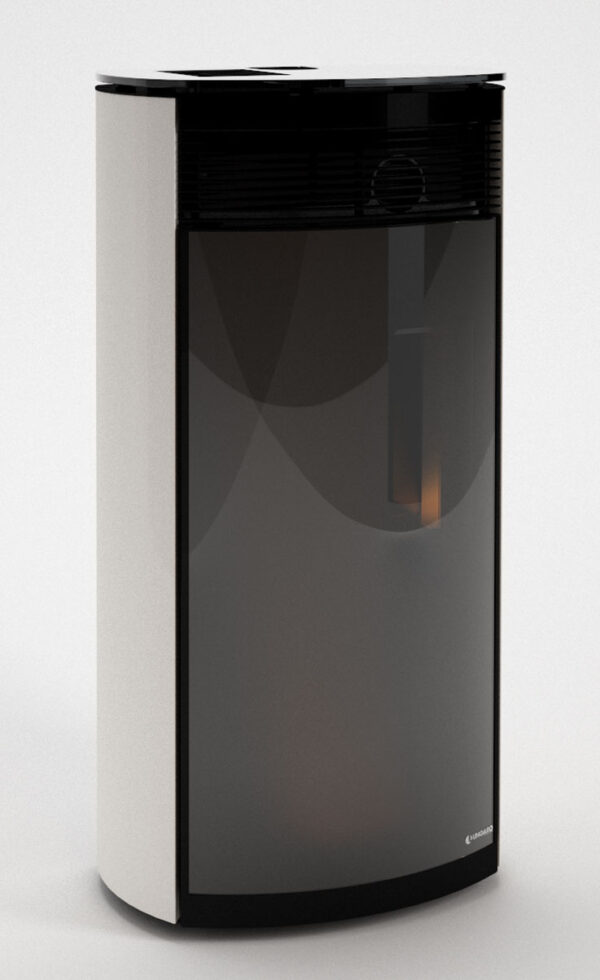

FAGIOLO 12 Style
 |
 |
 |
Description
Contemporary design, suitable for any interior. All the heat you need is in a compact stove. The innovative TuboAir® line is distinguished by its exclusive vertical exchanger with 3 flue gas passes providing a highly efficient, economical and ecological Ungaro solution that revolutionizes pellet heating. Powder-coated steel finish, aesthetic glass door.
Additional information
| Weight | 120 kg |
|---|---|
| Dimensions | 603 × 376 × 1197 mm |
Plus
• Space saver;
• Upper or rear smoke outlet;
• Integrated T-pipe with front service;
• Double aesthetic and technical door;
• Forced frontal ventilation;
• Electronic cleaning of burn pot;
• 3 automatic programations;
• Auxiliary contact for external thermostat;
• Automatic control of combustion power;
• Double room probe;
• Monocoque construction of combustion chamber;
• Mechanical draft control;
• Pressure relief valve;
• Ceramic igniter;
• Anti-vibration rubber pads.
Optional
• Glass hearth pad;
• Additional kit for warm air ducting;
• Air tight stove.
Data sheet
| Dati Tecnici | |||
|---|---|---|---|
| Potenza Termochimica Heat input | max | kW | 11,7 |
| min | kW | 3,4 | |
| Rendimento Efficiency | max | % | 89,9 |
| min | % | 92,2 | |
| Potenza all'aria Power to air | max | kW | 10,4 |
| min | kW | 3,1 | |
| Consumo orario pellet Pellet consumption per hour | max | kg | 2,4 |
| min | kg | 0,7 | |
| Capacità serbatoio Pellet hopper | kg | 22 | |
| Superficie Riscaldabile Heating area | m2 | 90 | |
| Uscita scarico fumi Exhaust pipe | Ømm | 80 | |
| Tiraggio Draft | Pa | 12 | |
| Entrata aria comburente Air intake | Ømm | 50 | |
| Tensione alimentazione Power supply | V | 220 | |
| Hz | 50 | ||
| Assorbimento elettrico in fase di lavoro Energy consumption | W | 165 | |
| Altezza Height | mm | 1185 | |
| Larghezza Width | mm | 600 | |
| Profondità Depth | mm | 385 | |
| Peso Weight | kg | 140 |
Download
- Data sheet:
- Energy label:
- Product data:
- DoP:
- Test certificate:
- Environmental product declaration:
Colors
| RAL 9005 | RAL 3004 | RAL 8017 | RAL 9010 | RAL 1035 | RAL 6012 | RAl 5024 | RAL 6003 |
