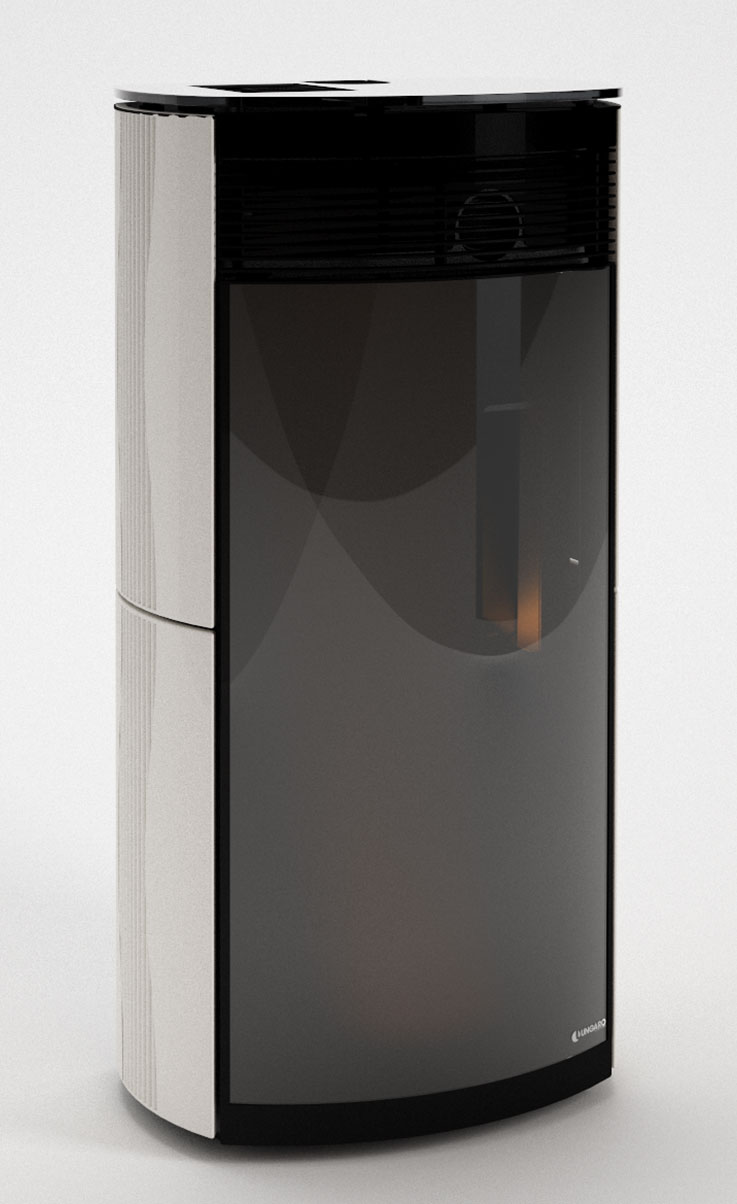

FAGIOLO 12 Classic

online services
SKU: en_FTBAC11C Category:

Description

Contemporary design, all the heat you need in a compact stove. The model distinguishes the exclusive vertical exchanger with triple flue gas passes providing a highly efficient, economical and ecological Ungaro solution that revolutionizes pellet heating. Ceramic finish available in 4 colours.

Additional information

Weight 140 kg
Dimensions 603 × 376 × 1197 mm

Plus

• Space saver;
• Upper or rear smoke outlet;
• Integrated T-pipe with front service;
• Double aesthetic and technical door;
• Forced frontal ventilation;
• Electronic cleaning of burn pot;
• 3 automatic programations;
• Auxiliary contact for external thermostat;
• Automatic control of combustion power;
• Double room probe;
• Monocoque construction of combustion chamber;
• Mechanical draft control;
• Pressure relief valve;
• Ceramic igniter;
• Anti-vibration rubber pads.

Optional

• Glass hearth pad;
• Additional kit for warm air ducting;
• Air tight stove.

Data sheet

Dati Tecnici
Potenza Termochimica
Heat input
maxkW11,7
minkW3,4
Rendimento
Efficiency
max%89,9
min%92,2
Potenza all'aria
Power to air
maxkW10,4
minkW3,1
Consumo orario pellet
Pellet consumption per hour
maxkg2,4
minkg0,7
Capacità serbatoio
Pellet hopper
kg22
Superficie Riscaldabile
Heating area
m290
Uscita scarico fumi
Exhaust pipe
Ømm80
Tiraggio
Draft
Pa12
Entrata aria comburente
Air intake
Ømm50
Tensione alimentazione
Power supply
V220
Hz
50
Assorbimento elettrico in fase di lavoro
Energy consumption
W165
Altezza
Height
mm1185
Larghezza
Width
mm600
Profondità
Depth
mm385
Peso
Weight
kg140

Download

Colors

RAL 3004 RAL 9010 RAL 1035 RAL 7036
