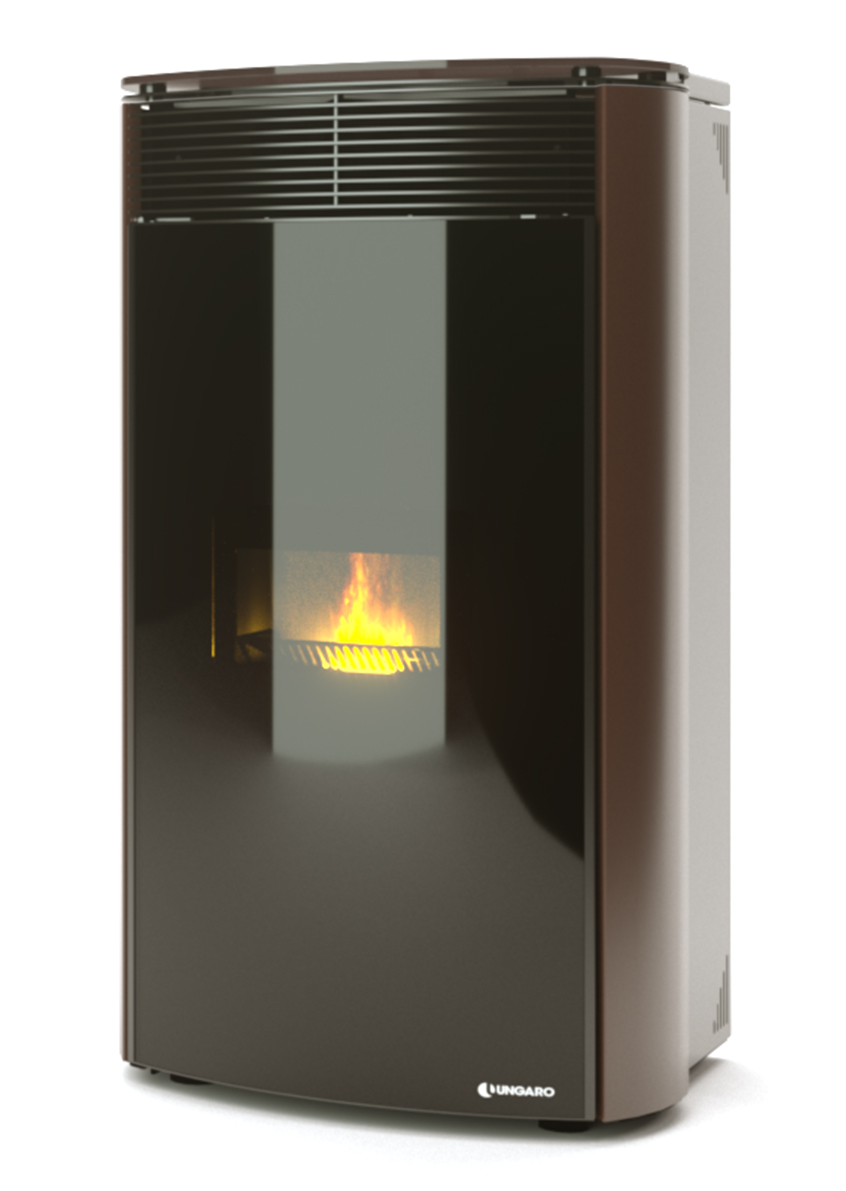

F Style 6/24
| Maia |  |
 |
 |
 |
 |
|
 |
||||||
| Aqa | |
|
|
|
 |
Description
Pellet hydro stove with automatic combustion modulation for central home heating. Frontal air blower. Kit for continuous domestic hot water supply (optional). Powder-coated steel finish, glass top and aesthetic door.
Additional information
| Weight | 165 kg |
|---|---|
| Dimensions | 600 × 580 × 1120 mm |
Plus
• Copper heat exchanger (mod. Maia) or stainless steel heat exchanger (mod. Aqa);
• Easy Clean ash box;
• Forced frontal ventilation;
• Double aesthetic and technical door;
• High resolution LCD display;
• Electronic cleaning of burn pot;
• 3 automatic programations;
• Automatic control of combustion power;
• Return probe for optimized modulation;
• Auxiliary contact for external thermostat;
• Multi system control (Boiler/Cylinder/Stratification);
• Open vented / Sealed system control;
• Digital pressure gauge;
• High-efficiency pump;
• Mechanical draft control;
• Water pressure safety control;
• Expansion vessel, 3 bar safety valve;
• Pressure relief valve
• Anti-vibration rubber pads.
Optional
• Sanitary hot water kit;
• Glass hearth pad;
• Kit delta Δ20 – return temperature control;
• Remote touch screen control panel and room thermostat;
• Kit GPRS
• Klimaworks – climatic probe;
• ASIA with storage of optimal parameters
• Water tank/boiler temperature probe;
• Wifi module to connect with main board, an App available on App Store and Coogle Play.
Data sheet
| Dati Tecnici | AQA | MAIA | ||
|---|---|---|---|---|
| Potenza Termochimica Heat input | max | kW | 25,7 | 24,3 |
| min | kW | 6,9 | 6,8 | |
| Potenza Nominale Nominal power | max | kW | 23,5 | 22 |
| min | kW | 6,5 | 6,5 | |
| Rendimento Efficiency | max | % | 91,5 | 90,5 |
| min | % | 94 | 95,5 | |
| Potenza all'acqua Power to water | max | kW | 19,5 | 19,5 |
| min | kW | 4,5 | 5,0 | |
| Potenza all'aria Power to air | max | kW | 4,0 | 2,5 |
| min | kW | 2,0 | 1,5 | |
| Consumo orario pellet Pellet consumption per hour | max | kg | 5,4 | 5,0 |
| min | kg | 1,4 | 1,4 | |
| Capacità serbatoio Pellet hopper | kg | 35 | 35 | |
| Superficie Riscaldabile Heating area | m2 | 160 | 160 | |
| Uscita scarico fumi Exhaust pipe | Ømm | 80 | 80 | |
| Tiraggio Draft | Pa | 12 | 12 | |
| Entrata aria comburente Air intake | Ømm | 60 | 60 | |
| Prevalenza Circolatore Water pump prevalence | m | 5 | 5 | |
| Pressione utilizzo a freddo Water pump prevalence | bar | 0,8/1,2 | 0,8/1,2 | |
| Dimensione vaso di spansione Expansion vessel | l | 6 | 6 | |
| Tensione alimentazione Power supply | V | 220 | 220 | |
| Hz | 50 | 50 | ||
| Assorbimento elettrico in fase di lavoro Energy consumption | W | 160 | 160 | |
| Produzione acqua calda sanitaria (optional) Domestic hot water supply (optional) | l/min | 12 | 12 |
Download
- Data sheet:
- Data sheet:
- Energy label:
- Energy label:
- Product details:
- Product details:
- DoP:
- DoP:
- Environmental product declaration:
- Environmental product declaration:
- Environmental Ministerial Decree:
- Environmental Ministerial Decree:
- User Manual:
Colors
| RAL 9005 | RAL 3004 | RAL 8017 | RAL 9010 | RAL 1035 | RAL 6012 | RAl 5024 | RAL 6003 |
